Functions:

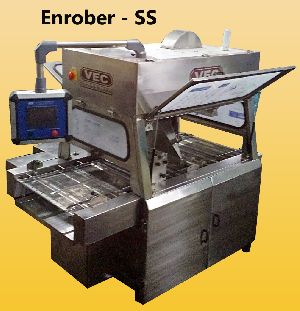

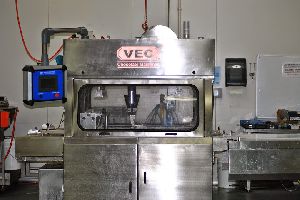

Chocolate Enrober for the industrial enrobing of cream wafers with chocolate. Consists of chocolate tank with chocolate bath, air blower etc…
Specifications:
- Enrober Chain/ Band width 620mm
- MOC : Optional SS.
- 1mtr wire mesh infeed conveyer.
- All contatct parts are SS304 and aluminum , body mild steel duly painted poly corbonateopenable doors.
- Enrober chain height at 900mm +/- 50mm from the ground.
- Chocolate tank (SS) inbuilt with0.5hp mixing arm and two electric heaters each 1kw to keep hot the tank with sensor.
- Branded 0.75kw geared motor with control drives.
- Digital thermostats with double display.
- Provided 2 IR heaters on top of conveyer to keep warm cabinet temperature.
- Provided adjustable rodd with variable speed driver.
- Air curtain blower 2hp with variable speed drive.
- Provided Chocolate curtain distribution system with chocolate pump driven by 2hp geared motor.
- Size : 2200mm X 1600mm X 2300mm
- Area requires for this machine : 4200mm X2000mm X 4300mm
